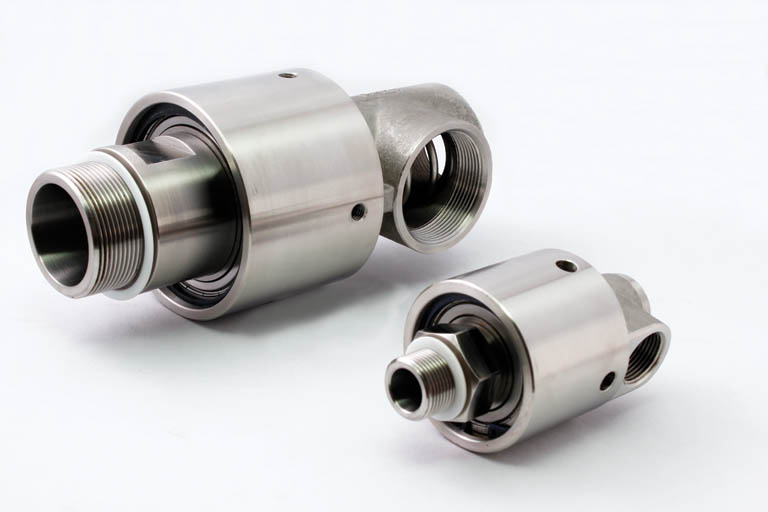

Mono-flow, Dual-flow Rotary Unions
- Rigid Rotary Unions - supported on a pair of deep-grove ball bearings
- All Stainless steel construction
- Rotor, housing and internals all in Stainless steel.
- Carbon / SiC. Seals for long, trouble free performance
- Threaded Rotor as well as Flanged Rotor – Variants available
- Extensively used in all Industries including – Steel Plastic, Rubber, Engineering, Food & Pharma, Paper, Printing & packaging and others.
Variants:
| Series 60 | Mono-flow Rotary Unions |
|---|---|
| Series 60 D | Dual-flow Rotary Unions – Fixed Siphon |
| Series 60 DR | Dual-flow Rotary Unions - Rotary siphon |
Operating Parameters
| Media | Pressure | Temperature | Rotational Speed |
| Water | 10 bar | 90°C | 2500 rpm |
| Oil | 10 bar | 90°C | 2500 rpm |
| Steam | 1 bar | 100°C | 1500 rpm |
Size Range
| ¼” BSP / NPT to 21/2” BSP/NPT |
| Flanged variants available on demand. |
Mono-flow, Dual-flow Rotary Unions
- Rigid Rotary Unions - supported on a pair of deep-grove ball bearings
- Brass housing with Stainless steel Rotor & internals
- Carbon / SiC Seals for long, trouble free performance
- Threaded Rotor as well as Flanged Rotor – Variants available
- Extensively used in all Industries including – Steel Plastic, Rubber, Engineering, Food & Pharma Paper, Printing & packaging and others.
Variants:
| Series 61 | Mono-flow Rotary Unions |
|---|---|
| Series 61 D | Dual-flow Rotary Unions – Fixed Siphon |
| Series 61 DR | Dual-flow Rotary Unions - Rotary siphon |
Operating Parameters
| Media | Pressure | Temperature | Rotational Speed |
| Water | 10 bar | 90°C | 2500 rpm |
| Oil | 10 bar | 90°C | 2500 rpm |
| Steam | 1 bar | 100°C | 1500 rpm |
Size Range
| ¼” BSP / NPT to 21/2” BSP/NPT |
| Flanged variants available on demand. |
Mono-flow, Dual-flow Rotary Unions
- Rigid Rotary Unions - supported on a pair of deep-grove ball bearings
- CS Housing, Heat Treated Alloy Steel Rotor, SS internals
- Carbon / SiC. Seals for long, trouble free performance
- Threaded Rotor as well as Flanged Rotor – Variants available
- Extensively used in all Industries including – Steel Plastic, Rubber, Engineering, Food & Pharma Paper, Printing & packaging and others.
Variants:
| Series 62 | Mono-flow Rotary Unions |
|---|---|
| Series 62 D | Dual-flow Rotary Unions – Fixed Siphon |
| Series 62 DR | Dual-flow Rotary Unions - Rotary siphon |
Operating Parameters
| Media | Pressure | Temperature | Rotational Speed |
| Water | 10 bar | 90°C | 2000 rpm |
| Oil | 10 bar | 90°C | 2000 rpm |
Size Range
| 1” BSP / NPT to 21/2” BSP/NPT |
| Flanged variants available on demand. |
